Diesel exhaust bellows provides an excellent corrosion resistance and a flexible solution to various industries such as Diesel engine, automotive, oil and gas industries. The Exhaust bellows are built to withstand the high temperature of large engines with special materials, the bellows can be designed with either flanges, weld rings or a combination thereof. Bellows also reduce the number of welds, thus reducing installation time. The bellows can increase flow by eliminating unnecessary bends and maintain a leak-free system.

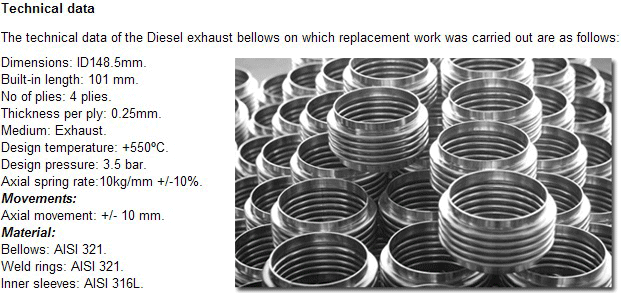

15000 pcs of DN150 Exhaust bellows were made and supplied for Germany Diesel engine applications, the job involved replacing the bellows of Axial compensators for the World Top 500 companies who is the largest producer of Diesel engine in the world. So the production system involved is large indeed. The compensators, the bellows and inner sleeves of which now needed replacing, were supplied by Bellowman. The first stage of the job involved disconnecting the piping system from the compensators. Then the existing bellows and inner sleeves were removed and the new ones prepared for insertion and finally, the new bellows and inner sleeves were welded into place and the piping system reconnected.
